PP Strap Making Machine 5-19mm single-screw PP PET extruder high-speed machine
PRODUCT DESCRIPTION OF PP STRAP MAKING MACHINE:
PP Strap Making Machine
The whole machine of the PP Strap Making Machine adopts a PLC control system, a PLC touch screen control system, which replaces the potentiometer to control the speed regulation, can memorize the production parameters, and is more convenient to operate. PLC touch screen control system, which replaces the potentiometer to control the speed regulation, can memorize the production parameters, and is more convenient to operate.
1. Production of plastic raw materials----100% recycled materials or mixed new materials can be used to produce strapping tapes. Calcium carbonate can also be appropriately added according to customer conditions to reduce production costs, increase product profits, and break through market competitiveness.
2. Strapping machine----The various specifications of strapping tapes produced can be used in various fully automatic unmanned strapping machines at home and abroad.
3. Line speed----High extrusion output, the finished product line speed can reach 200-300m/min.
4. Screw----Special screw for high-precision and high-quality extruders, using well-known brands, unique parameter design, with the advantages of large extrusion volume, good plasticization, high hardness, and wear resistance.
.

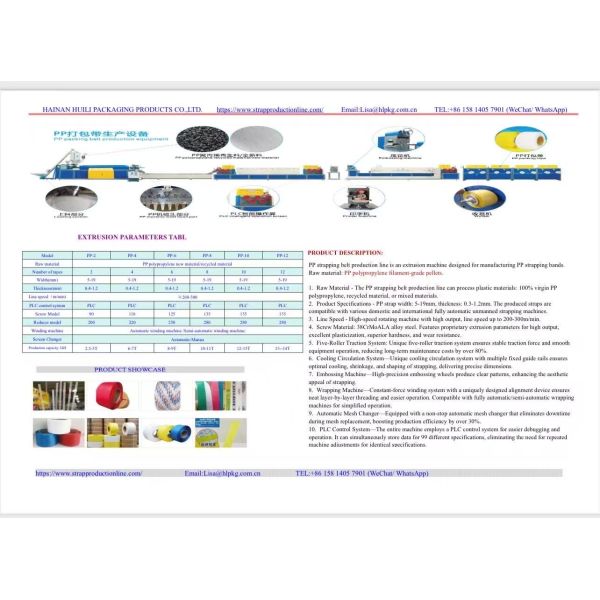

EXTRUSION PARAMETERS TABEL
| Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
| Raw material | PP polypropylene new material/recycled material |
| Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
| Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
| Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
| Line speed(m/min) | ≧260-300 |
| PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
| Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |
| Drying barrel (kg) | 100 | 150 | 200 | 200 | 200 | 200 |
| Winding machine | Automatic winding machine /Semi-automatic winding machine |
| Screen Changer | Automatic/Manua |
| Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |
ADVANTAGES:
1. Components are cut using high-quality CNC machine tools from abroad, with high-precision die parts, ensuring stable product forming quality and a thickness error range within the national strapping acceptance standard.
2. A unique five-roller traction system provides stable traction force, smooth equipment operation, reduces failure rate, and lowers subsequent maintenance costs by over 80%.
3. A unique cooling circulation system with multiple sets of shaping guide rails ensures better cooling, shrinkage, and shaping of the strapping, resulting in more accurate dimensions.
Finished PP packing straps:
PP strapping tape is suitable for baling machines:
Fully automatic strapping machine
Semi-automatic strapping machine
High-speed ultra-thin strapping machine
Handheld electric strapping machine
Manual strapping machine (iron buckle)
About th SERVICE:
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP Strap Making Machine.
2.Analysis of the cost of PP Strap Making Machine.
3.Raw materials that can be used for PP Strap Making Machine.
After-sales service:
1.Water and electricity circuits of PP Strap Making Machine, circuit drawings, etc.
2.Installation, commissioning and training of PP Strap Making Machine.
3.Maintenance service of PP Strap Making Machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
FAQ:
Q:What is the voltage of PP Strap Making Machine?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping belt?
A: L:36 M.
Q:Where is the PP Strap Making Machine produced?
A:We are from China.
Q:Can PP Strap Making Machine provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP Strap Making Machine stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP Strap Making Machinesupport customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP Strap Making Machine look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
