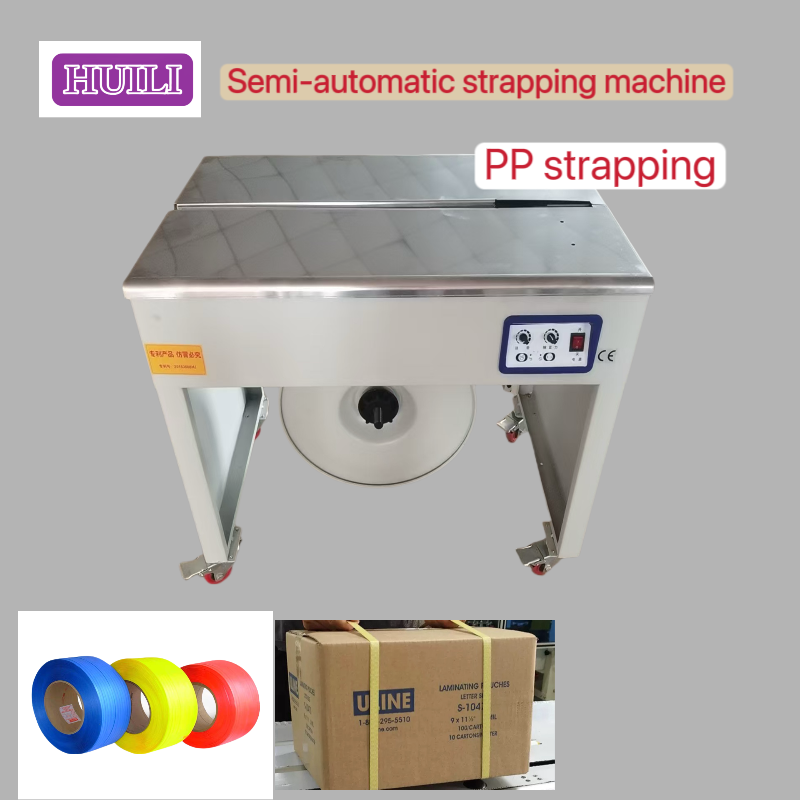

High speed semi-automatic packaging machine 6-15mm Packaging machine 100% hot melt bonding
Product description of semi-automatic baling machine:
Semi-automatic winding machine is a convenient packaging, and super fast strapping tool, easy to use, packaging speed, strong adhesion, will not fall off, suitable for a wide range, carton packaging, wood packaging, hardware packaging, home appliances packaging, paper packaging and so on.
D.C motor direct drive, strong function, high stability, more in line with a variety of delicate bale needs.
Hot melt packaging machine
Packing machine
PP Automatic baling machine
Automatic strapping machine
High-speed strapping machine
Semi-automatic strapping machine

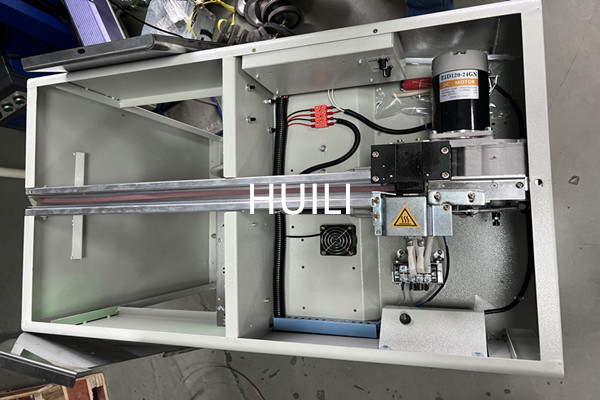

The main structure of the semi-automatic strapping machine includes:
① Frame-----The frame that supports the entire equipment to ensure operational stability.
② Belt guide system-----It consists of belt guide grooves, rollers, etc., which guide the strapping tape to be correctly wound and enter the machine.
③ Tightening mechanism------Includes tightening motor and tightening wheel, which is responsible for tightening the strapping tape.
④ Welding mechanism------Contains heating plate and pressure device, which is used to achieve hot-melt bonding of strapping tape.
⑤ Cutting mechanism------It consists of a cutter and a drive device to complete the cutting of the strap after strapping.
⑥ Control system------Includes buttons (start, emergency stop, etc.), knobs (adjusting strength, speed, etc.), sensors (detecting strap position), and controls the operation process of the machine.
⑦ Power-----Usually a motor (provides tightening and cutting power) and a power module.
PARAMETERS
| Name | Semi-automatic strapping machine |
| Suitable belt width | 9-15mm |
| Suitable belt thickness | 0.3-1.2 mm |
| Joining method | hot melt bonding |
| Adhesion rate | more than 100% |
| Maximum tightening force | 400N (about 40kg) |
| Strapping tape paper core | 200*180mm |
| Strapping tape paper core | unlimited |
| Power supply | single phase 200V/50HZ |
| Machine power | 0.4KW |
| Weight | 70KG |
| Machine size | (L)800*(W)600*(H)750 mm |
After-sales service:
1. Provide the machine's operating manual
2. Provide the machine's usage method (video)
3. Assist customers to choose the appropriate PP strapping belt
4. Assist customers to adjust the appropriate strapping strength
5. Warranty period for the whole machine: 12 months
About delivery packaging:
FAQ:
Q: What size of strapping products can the semi-automatic strapping machine be used for?
No size restrictions
Q : What size of PP strapping belt can the semi-automatic strapping machine be used for?
Width: 9-15mm, thickness: 0.3-1.2 mm.
Q: Can the semi-automatic strapping machine be customized?
Batch can be customized according to customer requirements
Q: Does the semi-automatic strapping machine have a warranty period?
Yes, warranty: 12 months
Q :Can the voltage of the semi-automatic strapping machine be customized?
Yes
Q: What is the weight of the semi-automatic strapping machine?
80KG, size: (L)800*(W)600*(H)750 mm
