Single screw PET strapping machine PET strapping production line PET plastic equipment
FEATURE DESCRIPTION OF PET STRAPPING PRODUCTION LING
PET plastic steel strip production line
PET strapping production line is a high-speed, intelligent, environmentally friendly plastic equipment, its advantages:
Raw materials: 100% bottle flakes or crushed materials or thickening granular materials
1. Width----- The PET strapping production line is an energy-saving and environmentally friendly plastic extruder capable of producing PET tapes with widths ranging from 9-32mm and thicknesses of 0.6-1.2mm.
2. Raw Materials----- The PET strapping production line can use PET bottle flakes or recycled PET materials to produce PET belt, utilizing an environmentally friendly manufacturing process.
3. Dehumidifier------ The dehumidification function of the PET BELT EQUIPMENT is a key feature of this production line, with a dehumidification air volume of 1000-2000 rpm.
4. Metering Pump--------The PET strapping production line is equipped with a metering pump of 100cc-150cc, ensuring uniform extrusion and consistent specifications.
PET plastic strip equipment
PET plastic tape equipment
PET packing tape production line
PET plastic steel belt machinery
PET belt making machinery
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials |
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 mm |
| Width (mm) | 0.4-1.2 mm |
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder |
| Winding machine | Automatic winding/ Semi-automatic winding |
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
ADVANTAGES:
Efficient production---- high degree of automation, fast production speed, can quickly meet large-volume demand. , Producible width: 9-32mm
Energy saving and environmental protection----using advanced technology, constant temperature extrusion system, low energy consumption, high output.
Easy operation----PLC automatic control system makes operation simple and reduces manual intervention.
Dehumidifier----The rotary honeycomb dehumidification and drying system is used to dry the raw materials. The dew point of -50℃ ensures that the moisture content of the raw materials is ≤50PPM, and it also has the effect of solid phase polycondensation and viscosity increase.

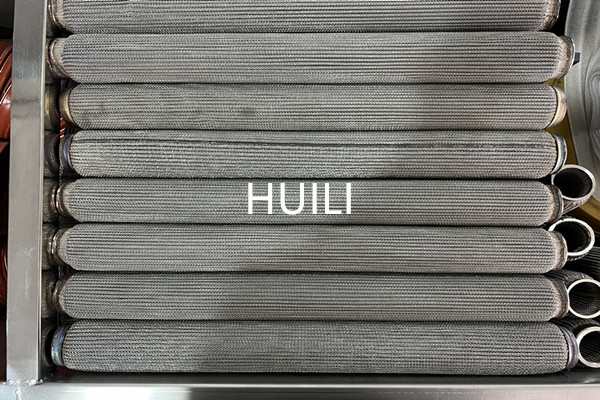

Filter----- Three-dimensional foldable large-area filter device, the unfolded area of the filter is 30 times larger than the traditional flat filter area; the filter mesh can reach 80 meshes, and the unique screen changing device greatly reduces the screen changing time and improves work efficiency.
Tools suitable for PET plastic steel strapping:
Pneumatic strapping machine
Electric strapping machine
Manual strapping machine
After-sales service
PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
|
|

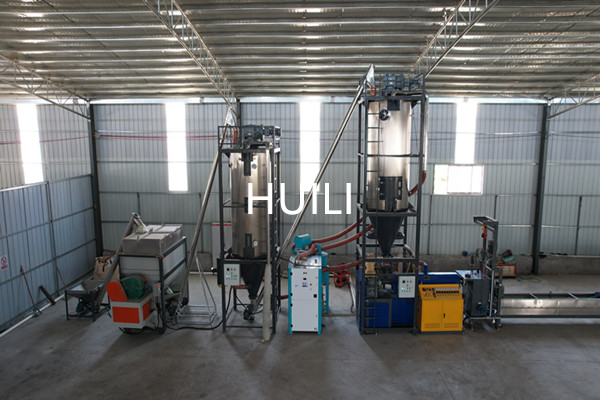

Single screw PET strapping machine PET strapping production line PET plastic equipment Images
|
